USB to Serial Converter
Connects One Serial Device to a USB Port, Prolific PL-2303 Chip, 45 cm (18 in.)
SKU: 205153Highlights
- Quickly converts a USB port to a Serial/RS232/COM/DB9 port
- The customizable and compatible Prolific PL-2303 chipset makes it the ideal solution for many OSs and platforms
- Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
Easily connect serial devices through a USB port
Most modern computers and laptops don't have RS232 (DB9) ports, making the use of legacy peripherals and high-tech devices which connect with COM ports almost impossible. The Manhattan USB to Serial Converter — with its serial RS232 (DB9) port and Prolific PL-2303 chipset — easily expands a single USB port to connect and support serial modems, barcode scanners, digital cameras, card readers, Ham/Amateur Radios, GPS, CNC machines, telescopes, embroidery machines, fuel injection controllers, PDUs, network switches and other devices.
Quality Construction and Easy Installation
Gold-plated contacts and rugged construction combine to offer a reliable connection between the computer and serial peripherals for consistent, trouble-free performance. Windows compatibility with plug-and-play installation and hot-swappability help provide seamless use without inconvenient and frustrating device conflicts.
- Quickly converts a USB port to a Serial/RS232/COM/DB9 port
- The customizable and compatible Prolific PL-2303 chipset makes it the ideal solution for many OSs and platforms
- Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
- Install as a standard COM/RS-232 port to provide serial connectivity for legacy and high-tech devices
- Chipsets PL-2303HXD and FTDI FT232RL configurations are also available at www.ManhattanProducts.com
- Windows compatible; plug and play; hot-swappable
- Three-Year Warranty
- Standards and Certifications
- CE
- FCC
- USB 1.0
- USB 1.1
- RoHS
- WEEE
Connections
- USB port; type-A male

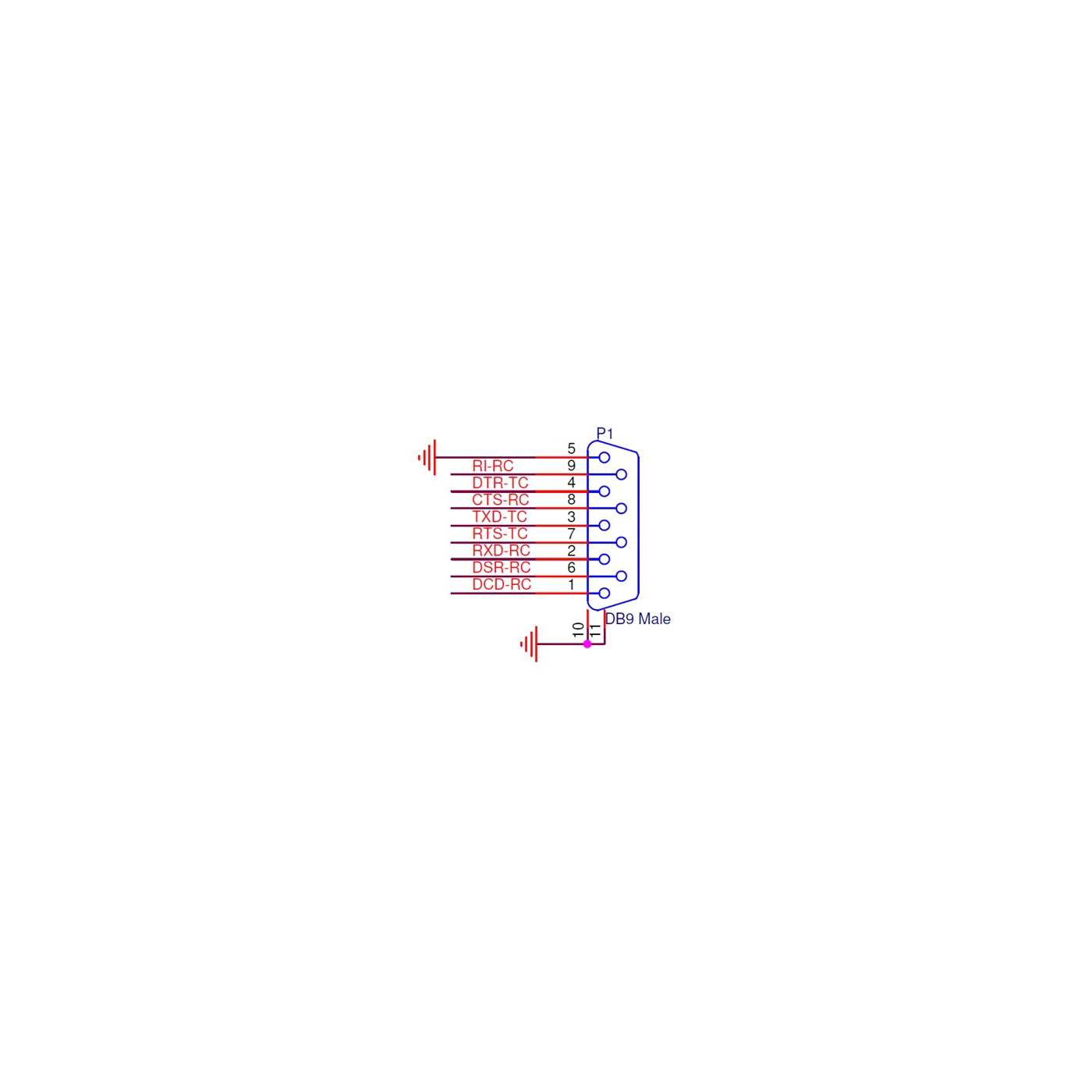

- Serial/COM/RS232/DB9 port; 9-pin male
General
- Transfer rate: up to 115 kbps
- Bus powered
- Prolific PL-2303 chipset
Physical
- 24 AWG cable gauge
- Cable length: 45 cm (18 in.)
- Net weight: 30 g (1.06 oz.)
- Gross weight: 41 g (1.45 oz.)
System Requirements
- Windows XP/Vista/7/8/8.1/10/11 or Linux or Mac 9.x/10.x or above
Package Contents
- USB to Serial Converter
- Instructions
Additional SKUs
- Amazon ASIN: B002WP3WA6
- EAN: 0766623205153
- UPC: 766623205153
- ALSO: 1607039
- API: 101362
Physical Specifications
- Product net weight: 0.03 kg
- Product gross weight: 0.04 kg
- Dimensions: 45 cm
- Packaging type: Bag
- Packaging dimensions: 240 x 135 x 18.5 [mm]
- Master Carton Quantity: 220
- Master Carton Weight: 10.20 kg
- Master Carton Dimensions: 450 x 340 x 280 [mm]
- Driver
- Mac Drivers
Drivers for Mac 8,9, and 10.x » Download - Windows Drivers
Drivers for Windows 2000,XP and Vista » Download - Windows 2000/XP/Server2003 (32-bit) Windows Vista/7/Server2008 (32 & 64-bit)
Note: Use this driver ONLY to fix GPS Device detected as Microsoft Serial Ballpoint Issue. » Download - Drivers
Latest Drivers for
Mac 8.6 and above
Linux
Windows CE
Windows XP, Vista, 7 » Download - Driver (MAC OS X)
(10.6 -> 10.12) » Download - Driver (Linux) » Download
- Driver Installer for Windows
- WDF Driver: v3.8.25.0 (7/12/2018) - Windows 7/8.1/10
- WDM Driver: v3.8.24.0 (7/05/2018) - Windows XP » Download - Driver 1.12.0 for Windows
For Windows 10 (32 & 64-bit), Windows Vista, 7, 8, 8.1 (32 & 64-bit), Windows Server 2008, 2008R2, Server 2012, Server 2012R2 (64-bit), Windows 2000, XP, Server 2003 (32 & 64-bit) » Download - Mac OS X Universal Binary Driver v2.1.0
For Mac OS Big Sur (version 11) - see NOTE below
For Mac OS Catalina (version 10.15) .
For Mac OS High Sierra (version 10.14)
For Mac OS High Sierra (version 10.13)
For Mac OS X Sierra (version 10.12)
For Mac OS X El Capitan (version 10.11)
For Mac OS X Yosemite (version 10.10)
For Mac OS X Mavericks (version 10.9)
For PL2303 H/HX/HXD/EA/RA/SA/TA/TB chip versions
For Prolific USB VID_067B&PID_2303 Only
For PL2303GC, GS, GT, GL, GE , GD, GR chip versions
Includes Driver Installation Manual » Download - Windows 11
Release Date: December 2021 » Download
- Utility
- Chipset Check
(identify which chipset the converter uses) » Download
