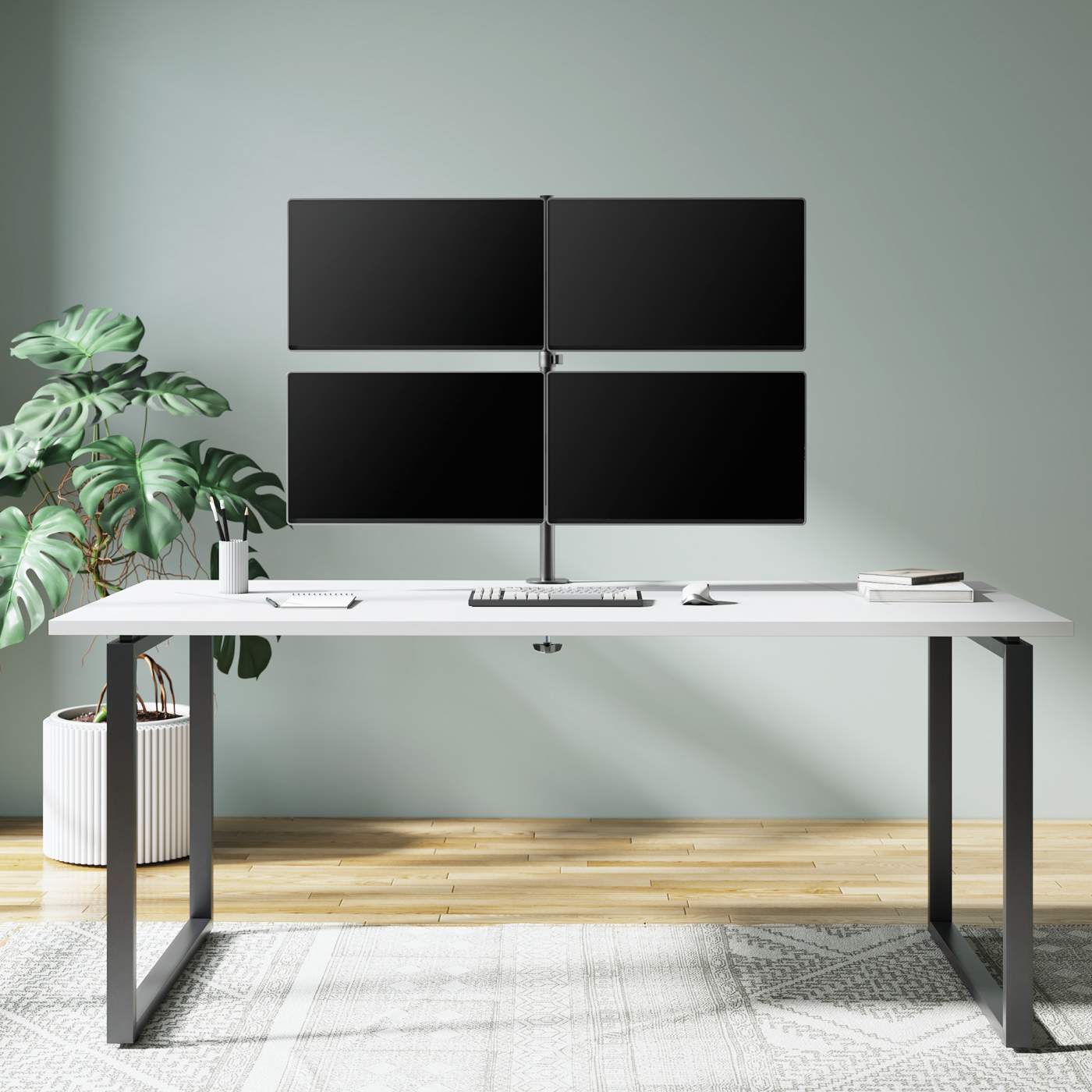

Universal Four Monitor Mount with Double-Link Swing Arms

Holds Four 13" to 32" LCD Monitors up to 8 kg (17 lbs.), Black

SKU: 461566

Highlights

  • Meets VESA standards — securely holds four LCD monitors from 13” to 32"
  • Positions monitors above the desktop to increase work space, improve visibility and minimize clutter
  • Double-link swing arms with separate ±45° tilt, ±180° rotation and height adjustments

Where to buy:

Country
Ship to
Purchase
In Deutschland kaufen
Deutschland
Ship to the US
United States


Manage the desktop. Maximize productivity.
LCD-monitor installation above the desk helps maximize the effectiveness of a potential workspace. The Manhattan Universal Four Monitor Mount with Double-Link Swing Arms improves organization on the desktop, making it easier to get work done on the computer.
Constructed from durable die-cast metal, this four monitor mount features a sturdy clamp that allows for quick, easy and secure mounting without the need to drill holes into desks or countertops. Its fully adjustable tilt, rotate, side-to-side, height and tension settings create the perfect position to comfortably increase productivity. Such adjustment capabilities can even help reduce eye fatigue or neck and back strain. In addition, the mount pole offers easy monitor rotation to allow others to view presentations and multimedia productions from almost any direction.

  • Meets VESA standards — securely holds four LCD monitors from 13” to 32"
  • Positions monitors above the desktop to increase work space, improve visibility and minimize clutter
  • Double-link swing arms with separate ±45° tilt, ±180° rotation and height adjustments
  • Steel pole with heavy-duty clamp mount
  • Removeable VESA plates, making monitor attachment faster and easier
  • Easy adjustment of monitor position
  • Ideal for office, studio, IT network and security applications
  • Installs easily to any desktop or other surface — no drilling required
  • Lifetime Warranty
    General
  • Fits 75 x 75 mm / 100 x 100 mm VESA-compliant monitors
  • Monitor weight capacity: up to 8 kg (17 lbs.) each
  • Installs on horizontal surfaces up to 10 – 85 mm (3.3 in.) thick

    Dimensions
  • Height (pole): 883 mm (34.8 in.)
  • Arm length (radius): 399 mm (15.7 in.)
  • Arm width (extended): 798 mm (31.4 in.)

    Package Contents
  • Universal Four Monitor Mount with Double-Link Swing Arms
  • Cable management clips and trim caps
  • C-clamp with thumb screws
  • Monitor mounting and assembly screws
  • Installation hardware with instructions and hex tool
  • Additional SKUs

    • Amazon ASIN: B07F3C4DPV
    • EAN: 0766623461566
    • UPC: 766623461566

  • Physical Specifications

    • Product net weight: 6.95 kg
    • Product gross weight: 8.14 kg
    • Dimensions: 76 (L) x 798 (W) x 988 (H) [mm]
    • Packaging type: Retail Box
    • Packaging dimensions: 185 x 592 x 123 [mm]
    • Master Carton Quantity: 2
    • Master Carton Weight: 16.28 kg
    • Master Carton Dimensions: 200 x 610 x 265 [mm]
  • Datasheet

  • Manual
    • Quick Instruction Guide     » Download
