Easily connect two HDMI cables to work over greater distances.
The Manhattan HDMI Adapter is ideal for joining two HDMI cables to give additional length to a cable, passively. This HDMI Coupler allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz.
- Connects 2 HDMI cables
- Supports 4K@60Hz resolution
- Straight, passive coupling connects 2 cables to overcome distance limitations
- Gold-plated contacts for best performance
- Intended for use with Manhattan HDMI cables
- Lifetime Warranty
- Standards and Certifications
- RoHS2
- ISO 9002
General:
- Bandwidth: 10.2 Gbps
- 340 MHz
- Meets or exceeds existing HDMI standards
- Length: 3 cm (1.1 in.)
Connectors
- HDMI A female, 19-pin gold-plated
- HDMI A female, 19-pin gold-plated
Electrical
- Current rating: 0.5 ADC
- Withstanding voltage: 300 VDC
- Insulation resistance: 5 MΩ
- Conductive resistance: 2 Ω
General
- Length (overall): 28.5 x 11.2 x 22 mm (1.1 x 0.4 x 0.9 in.)
- Weight: 10 g (0.35 oz.)
- Molded PVC

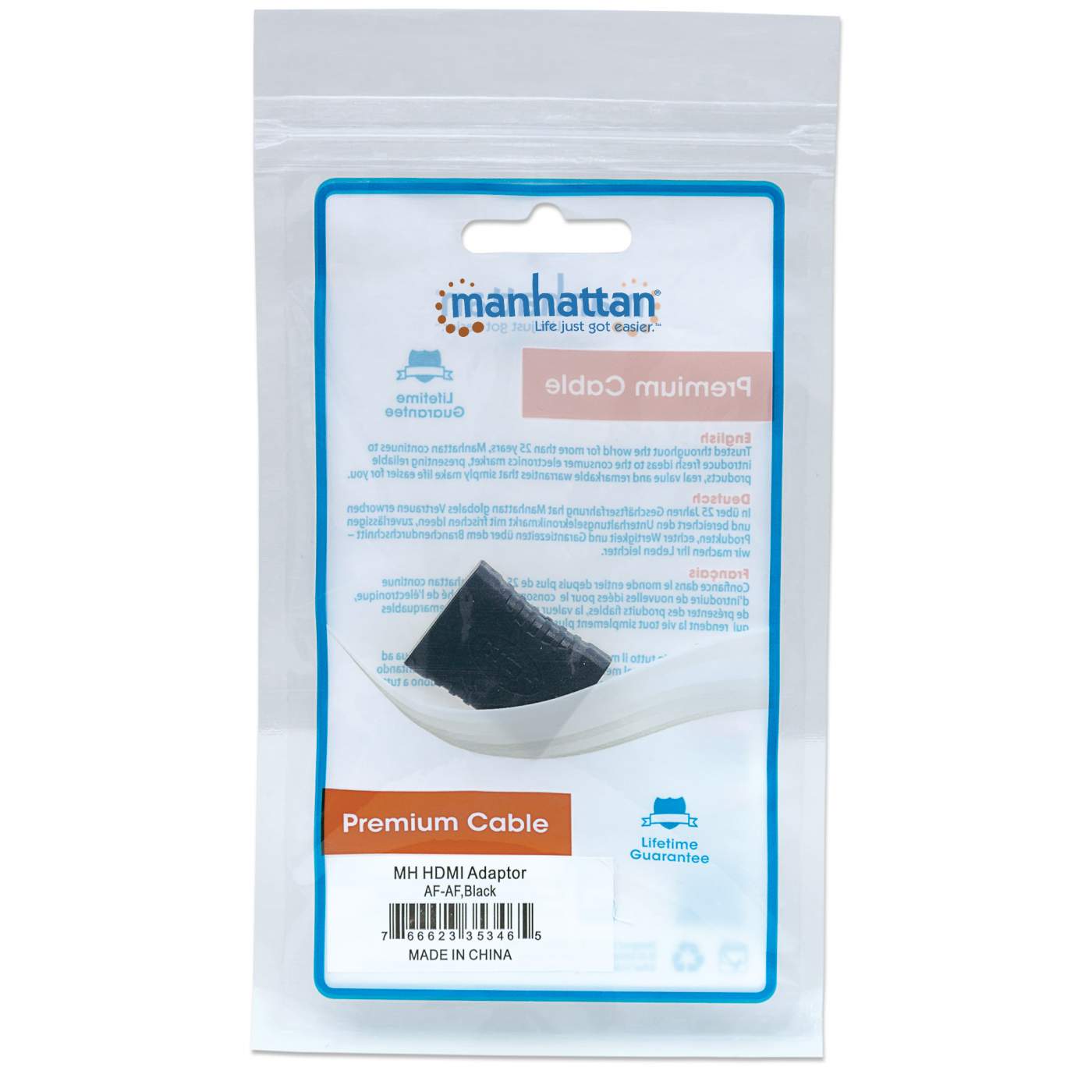

Package Contents
- HDMI Adapter, A to A
Additional SKUs
- Amazon ASIN: B013J7LJNM
- EAN: 0766623353465
- UPC: 766623353465
- ALSO: 2430525
- API: 179365
Physical Specifications
- Product net weight: 0.01 kg
- Product gross weight: 0.01 kg
- Dimensions: 28.5 (L) x 11.2 (W) x 22 (H) [mm]
- Packaging type: Bag
- Packaging dimensions: 182 x 100 x 12 [mm]
- Master Carton Quantity: 500
- Master Carton Weight: 7.70 kg
- Master Carton Dimensions: 450 x 340 x 180 [mm]
- Datasheet
- Datasheet » Download
