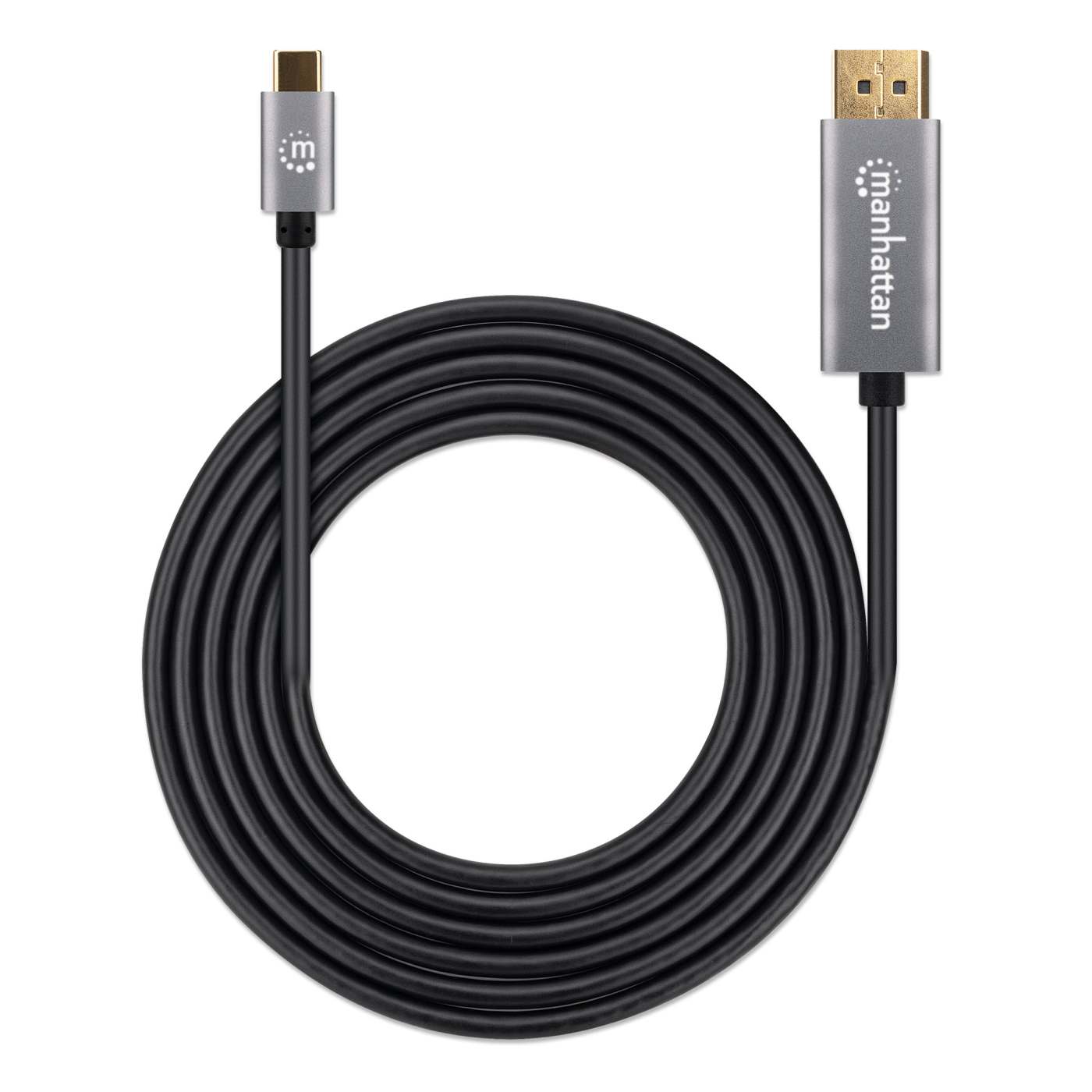

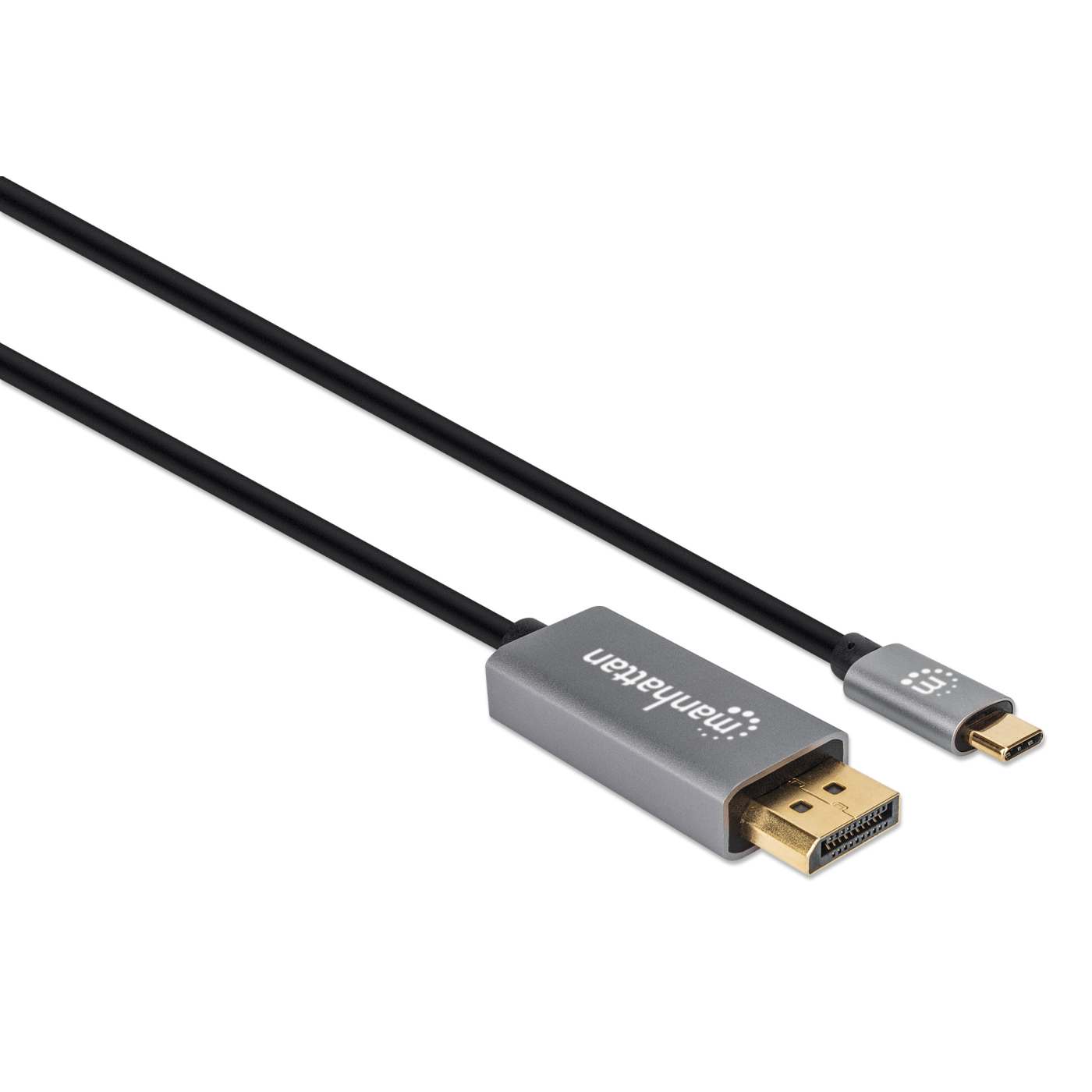

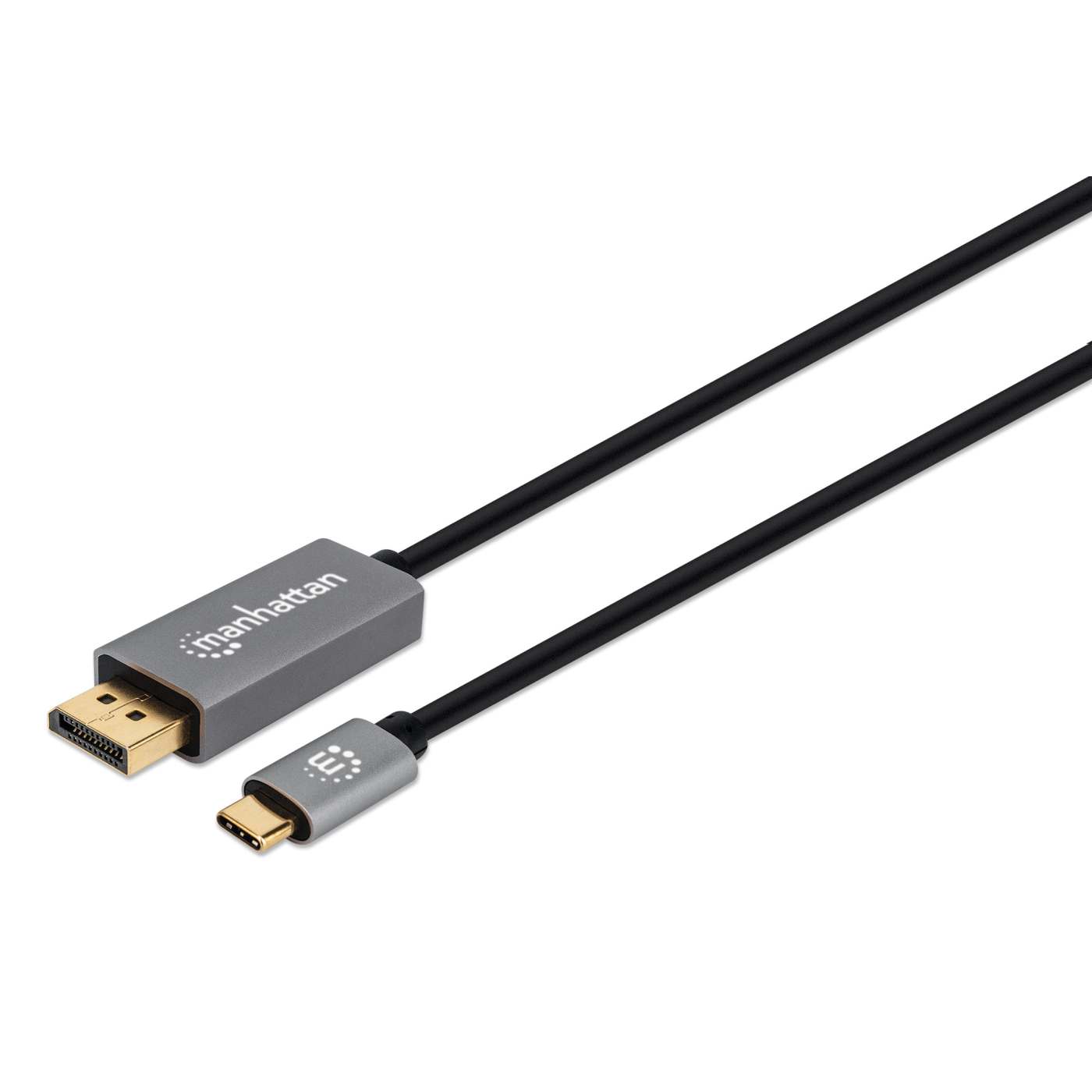

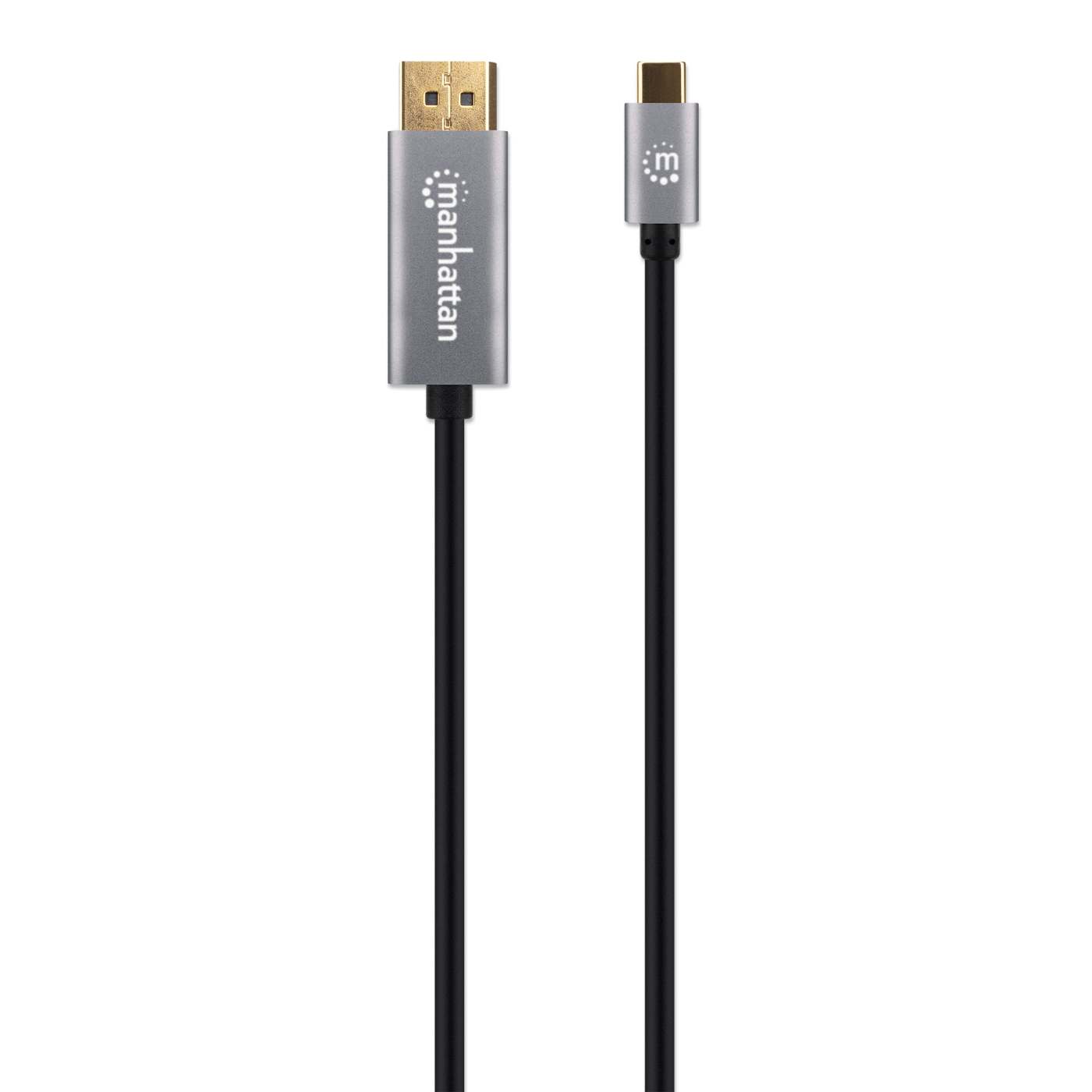

8K@60Hz USB-C to DisplayPort 1.4 Adapter Cable

USB-C Male to DisplayPort Male, 2 m (6.56 ft.), Supports 4K@120Hz, Gold-plated Contacts, Black

SKU: 354844

Highlights

  • Easily connects a USB-C device to a DisplayPort display, monitor or projector
  • Supports resolutions 8K@60Hz, 4K@120Hz, 1440p@144Hz (UWQHD), 1440p@165Hz (WQHD) and 1080p@240Hz
  • Compatible with any USB-C device that supports DP Alt Mode, including smartphones, Apple® MacBooks®, Chromebooks™, Pixels™, tablets and more

Where to buy:

Country
Ship to
Purchase
In Deutschland kaufen
Deutschland

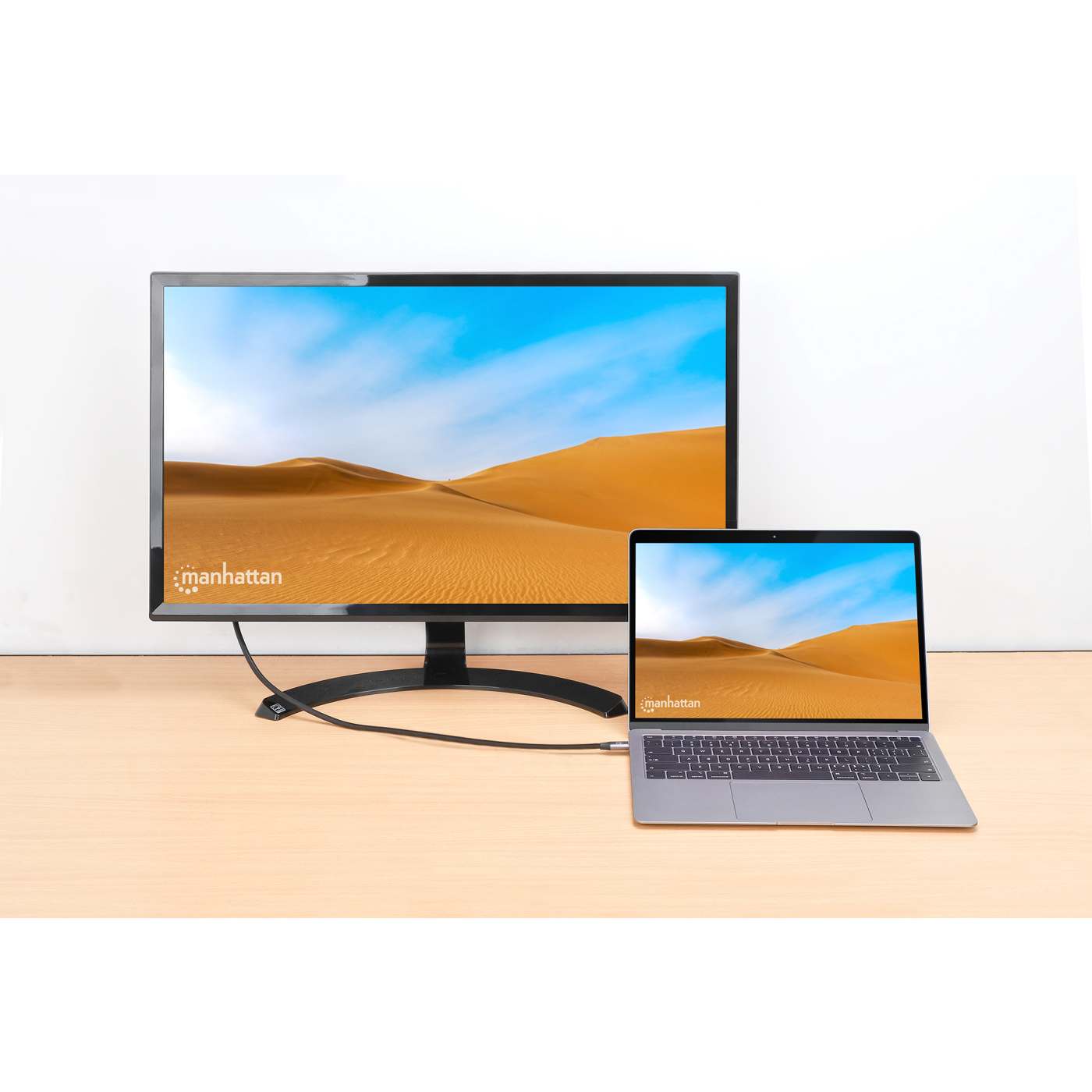

The DisplayPort Adapter Cable - connect a notebook, MacBook®, smartphone or tablet to a DisplayPort monitor

If you own a modern laptop or MacBook, you've noticed the lack of AV ports to connect a display. The Manhattan DisplayPort Adapter Cable opens up your connectivity options to link to a DP monitor, TV or projector through your device's USB-C port. Its superior DisplayPort 1.4 standard delivers images in brilliant 8K (7680 x 4320) at rapid 60 Hz or 4K UHD at blazing fast 120 Hz with HDR10 for perfect contrast and colors. But it doesn’t end there – if you have a smartphone or tablet that supports DP Alt Mode, you can connect it and take content from your mobile device to the big screen. Triple shielding and gold-plated contacts provide maximum conductivity as well as crisp, clear signal transmissions with zero EMI interference.

  • Easily connects a USB-C device to a DisplayPort display, monitor or projector
  • Supports resolutions 8K@60Hz, 4K@120Hz, 1440p@144Hz (UWQHD), 1440p@165Hz (WQHD) and 1080p@240Hz
  • Compatible with any USB-C device that supports DP Alt Mode, including smartphones, Apple® MacBooks®, Chromebooks™, Pixels™, tablets and more
  • DisplayPort 1.4 with state-of-the art, future-proof features for high-end gaming and AV applications
  • Thunderbolt™ 3 compatible
  • HDR10 for superior contrast and brilliant colors
  • Up to 32.4 Gbps bandwidth
  • Gold-plated contacts for corrosion-free connections
  • Triple shielded to reduce EMI and other interference sources
  • Unwired Pin 20 to prevent short circuits
  • Supports Multi-Stream Transport (MST) to daisy-chain multiple displays
  • Uncompressed 32-channel audio
  • Fully compliant with DisplayPort High Bit Rate 3 (HBR3)
  • Display Stream Compression 1.2 (DSC) for maximum resolution output
  • Unidirectional design, can only connect from a USB-C source to a DP display
  • Three-year warranty
    Standards and Certifications
  • DisplayPort v1.4
  • CE
  • RoHS

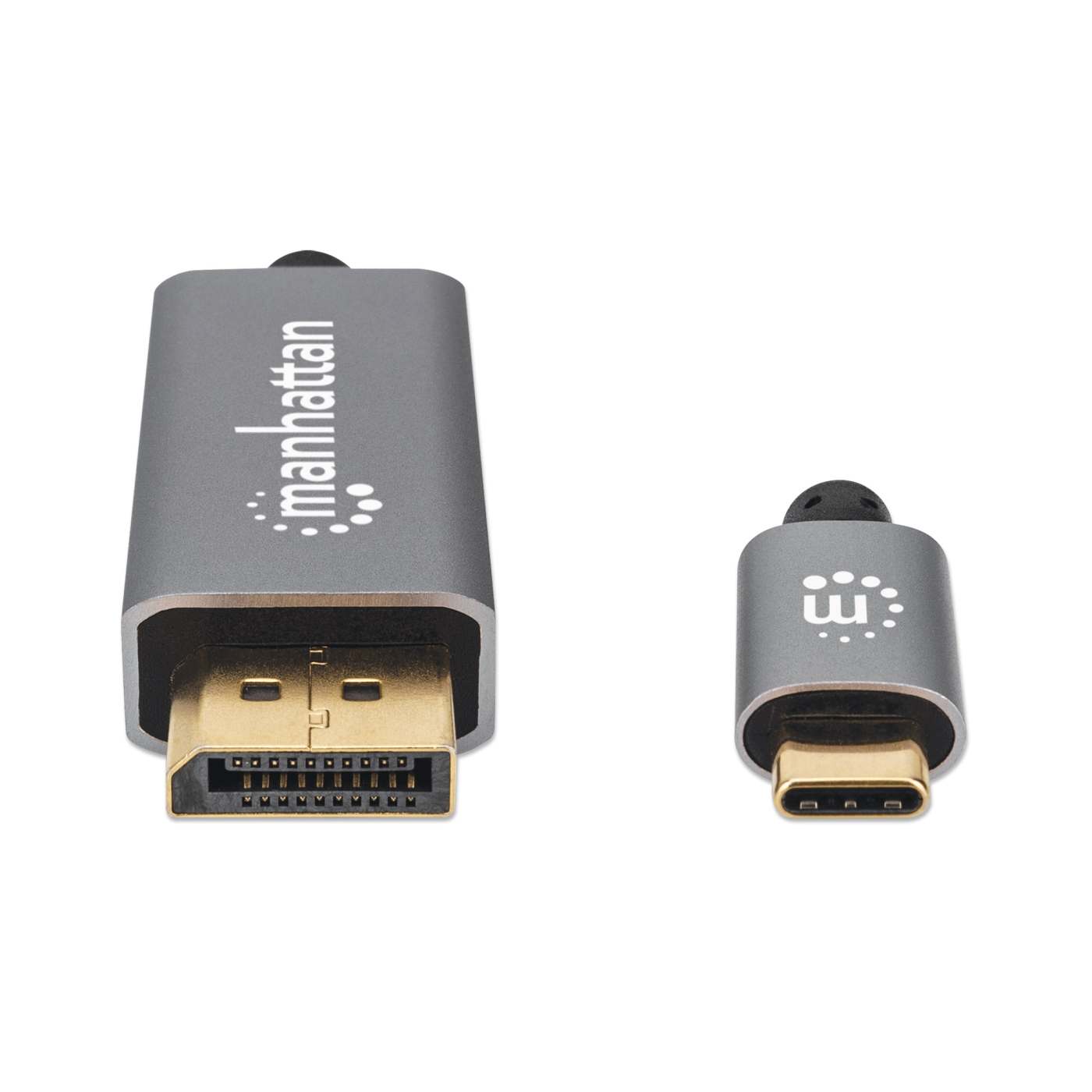

    Connectors
  • One DisplayPort 20-pin male
  • One USB-C male
  • 19 conductors (DP)
  • Gold-plated contacts
  • Aluminum shell housing

    Cable
  • 32 AWG
  • Triple shielding: aluminum and Mylar braid
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 5 MΩ
  • Contact resistance: 10 Ω
  • Length: 2 m (6.56 ft.)
  • Weight: 170 g (6 oz.)

    Operating Environment
  • Operation temperature: 0 - 40°C (32 - 104°F)
  • Storage temperature: -20 - 60°C (-4 - 140°F)
  • Humidity (noncondensing): 0 - 96%

    Package Contents
  • 8K@60Hz USB-C to DisplayPort 1.4 Adapter Cable
  • Additional SKUs

    • Amazon ASIN: B08L7Z1CR5
    • EAN: 0766623354844
    • UPC: 766623354844

  • Physical Specifications

    • Product net weight: 0.09 kg
    • Product gross weight: 0.09 kg
    • Dimensions: 2000 (L) x 20 (W) x 10 (H) [mm]

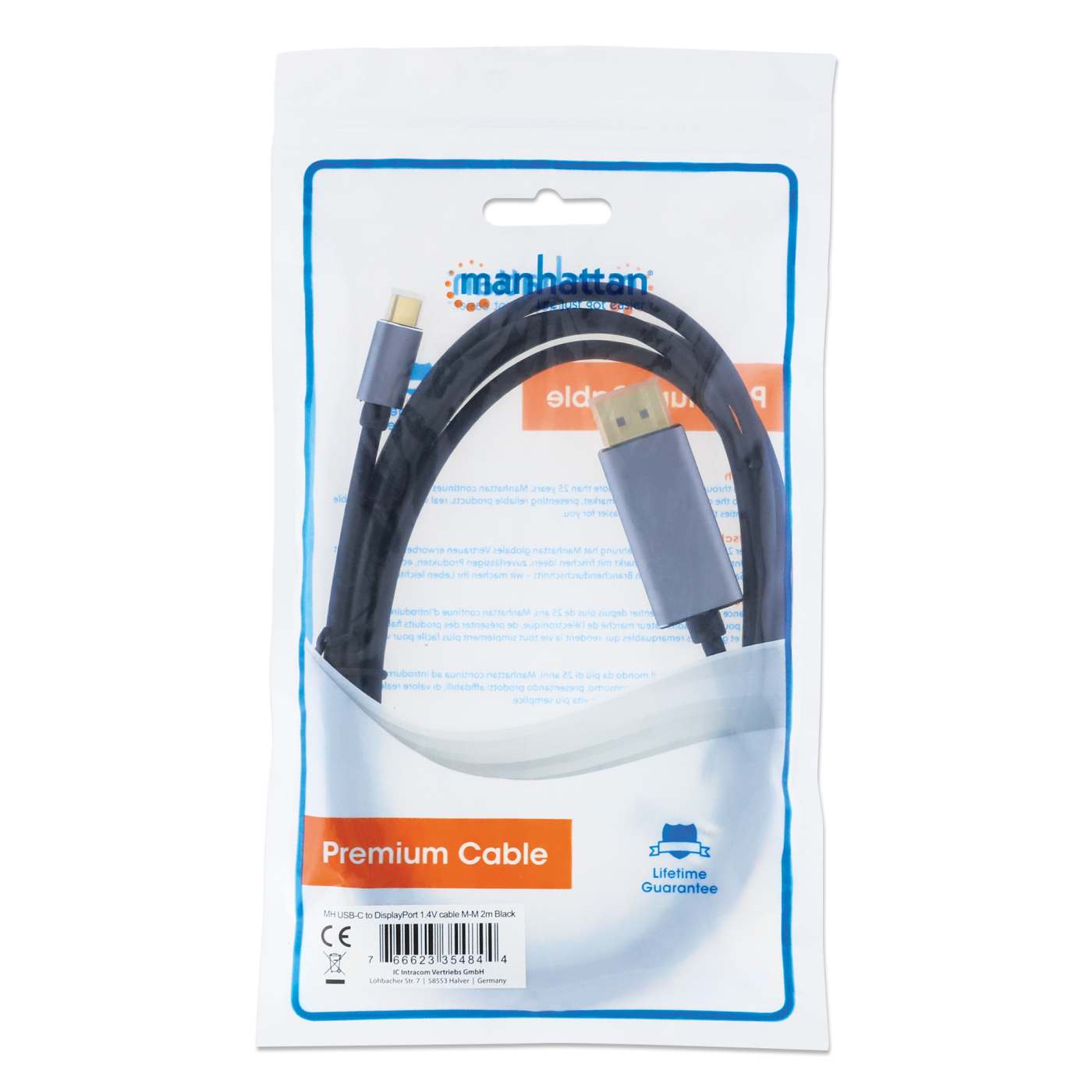

    • Packaging type: Bag
    • Packaging dimensions: 246 x 135 x 13.5 [mm]
    • Master Carton Quantity: 150
    • Master Carton Weight: 14.70 kg
    • Master Carton Dimensions: 400 x 300 x 300 [mm]
  • Datasheet
