1080p USB-A to HDMI Adapter

USB 3.0 to HDMI Adapter / Converter to connect your laptop, MacBook^®, Ultrabook or Desktop PC to an HDMI monitor, TV or projector

The Manhattan USB-A to HDMI Adapter lets you connect your laptop or desktop computer to an HDMI monitor, TV or projector through a single USB Type-A port. Add a display in mirror mode for larger screen space, or add it in extend mode for more productivity with multitasking. It provides a cost-effective and convenient way to expand the video capabilities of your Mac^® or PC. This product works like an external graphics card, so adding a second adapter lets you connect a second display.

An HDMI adapter that's made to go with you

The very compact housing makes this USB to HDMI Adapter the perfect travel companion. With a footprint of only 52 x 45 x 16 mm (2.05 x 1.77 x 0.63 in.), it's small enough to fit in an outer notebook bag pocket so you can create a mini-workstation for your laptop where ever you're going.

• Easily connects a USB-A device to an HDMI display
• Resolutions up to Full HD 1080p@60Hz (1980×1080)
• Converts a USB 3.2 Gen 1 (formerly USB 3.0) signal into an HDMI signal with video and audio
• Ideal for connecting an HDMI display to a PC or laptop that doesn't have an HDMI port or for adding a display if the HDMI port is already in use

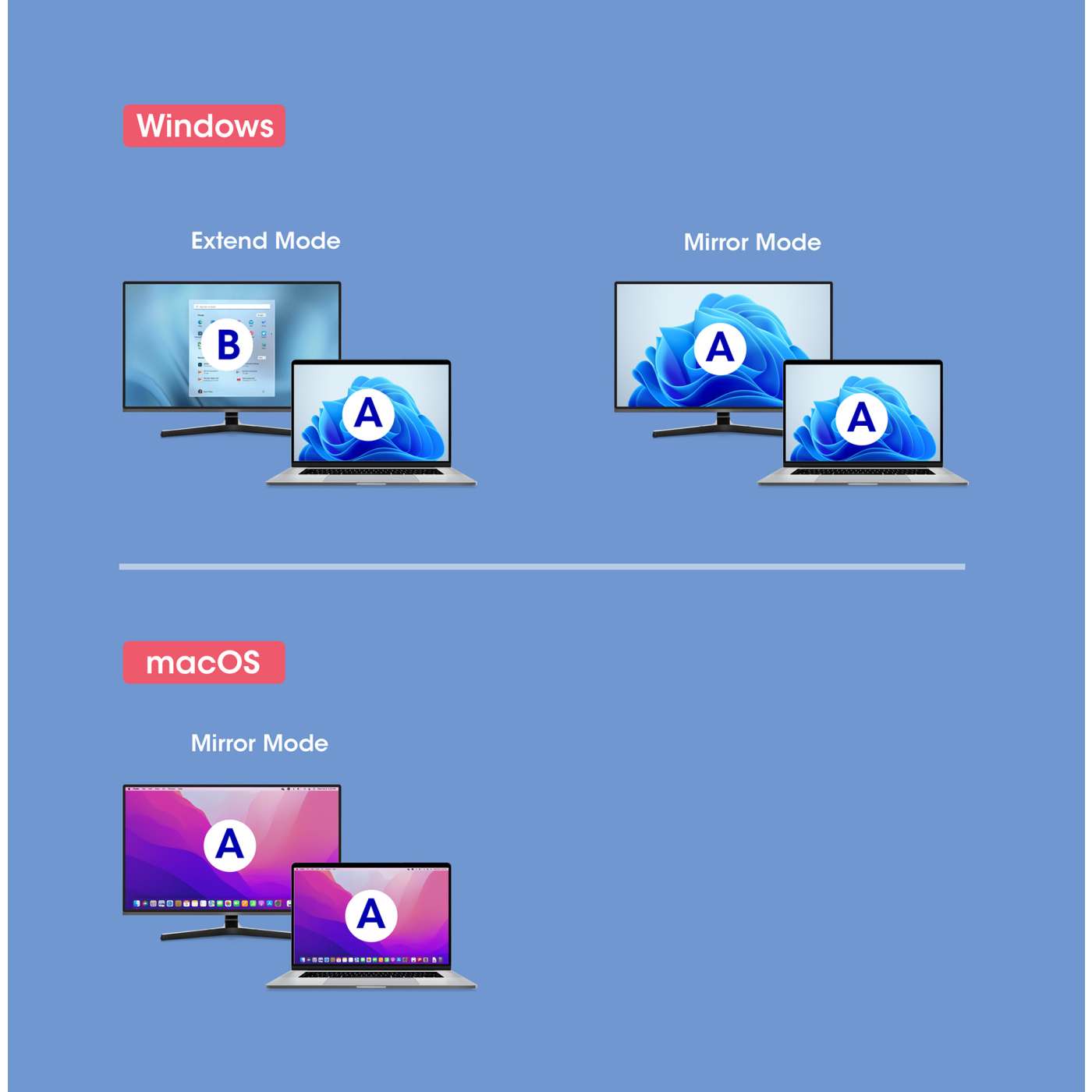

• Supports display modes Extended or Mirror on Windows®, and Mirror on Mac®
• Serves as an external graphics card, which allows adding up to two external displays to your system (requires one adapter per display)
• Built-in, sturdy 15 cm (6 in.) cable
• Bus powered: no external power supply needed
• Backward compatible with USB 2.0
• Portable, compact, lightweight design that easily fits into laptop bag pockets
• HDCP 1.4 compliant
• Plug-and-play installation; Windows®, and macOS® compatible
• Three-year warranty

Standards and Certifications

• USB 3.2 Gen 1

• HDCP 1.4

• CE

• FCC

• RoHS

• REACH

• UKCA

  Connections

• One USB-A 9-pin, male

• One HDMI 19-pin, female

  Physical

• Dimensions (L x W x H): 234 x 45 x 16 mm (9.21 x 1.77 x 0.63 in.)

• Net weight: 36 g (1.27 oz.)

• Gross weight: 64 g (2.26 oz.)

• Cable length: 15 cm (6 in.)

• Cable diameter: 28 AWG

• Plastic housing

  Operating Environment

• Operation temperature: -20 - 45°C (-4 - 113°F)

• Storage temperature: -20 - 80°C (14 - 176°F)

• Humidity (noncondensing): 5 - 90% RH

  System Requirements

• Windows 10 and above, macOS 10.14 and above or Android 5.1 and above

  Package Contents

• USB-A to HDMI Adapter

• Instructions

  This product is part of a group; the complete list of variations follows:

• #153690 - USB-A to HDMI

• #151788 - USB-C to HDMI, 4K@30Hz

• #153416 - USB-C to HDMI, 4K@60Hz, PD Port

• Additional SKUs

• EAN: 0766623153690
• UPC: 766623153690



• Physical Specifications

• Product net weight: 0.04 kg
• Product gross weight: 0.06 kg
• Dimensions: 234 (L) x 45 (W) x 16 (H) [mm]
• Packaging type: Retail Box
• Packaging dimensions: 175 x 90 x 25 [mm]
• Master Carton Quantity: 60
• Master Carton Weight: 4.11 kg
• Master Carton Dimensions: 400 x 370 x 200 [mm]

• Datasheet
• Datasheet     » Download

• Manual
• Quick Instruction Guide     » Download
