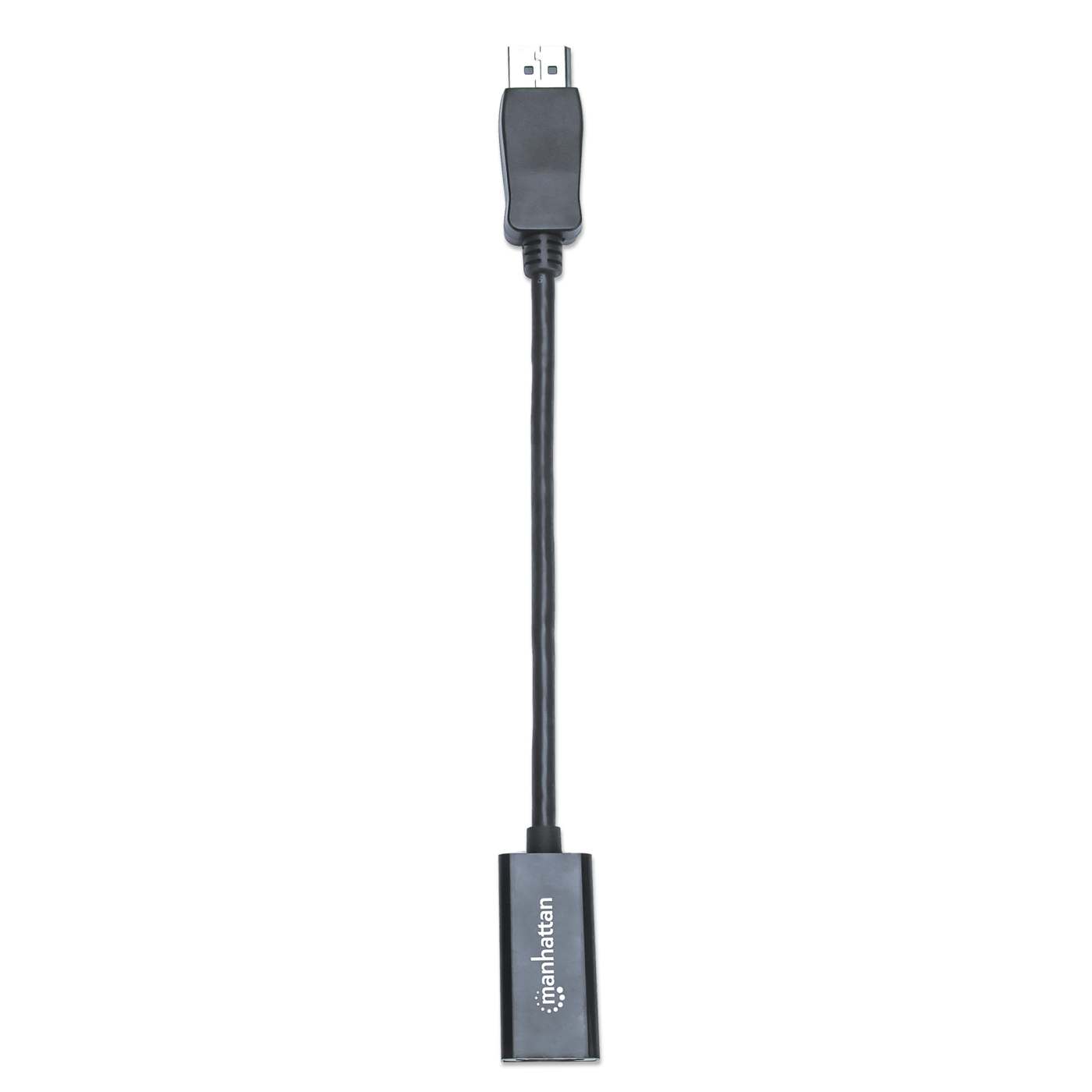

1080p Passive DisplayPort to HDMI Adapter

DisplayPort Male to HDMI Female, Cable Adapter, 1080p@60Hz, Black

SKU: 151634

Highlights

  • Converts a DisplayPort signal to an HDMI signal
  • Supports Deep Color, high-bandwidth 10.8 Gbps applications and HD resolutions at 1080p@60Hz (1920x1200)
  • Delivers a high-quality digital video signal — perfect for connecting a new DisplayPort source to an existing HDMI display

Where to buy:

Country
Ship to
Purchase
In Deutschland kaufen
Deutschland
Ship to the US
United States


Easily connect a DisplayPort source to an HDMI display.

The Manhattan Passive DisplayPort to HDMI Adapter establishes a fast, simple and convenient link between newer DisplayPort-equipped sources and existing HDMI displays. This passive adapter requires DP++ (dual-mode) video/graphics cards to regenerate the signal and ensure the best connection to an HD display. The adapter is easy and quick to install and requires no complicated configuration or setup. The Manhattan Passive DisplayPort to HDMI Cable Adapter is sure to help users fully realize the investment, value and service life of HDMI displays. It offers a passive, compact and integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces orderly.

  • Converts a DisplayPort signal to an HDMI signal
  • Supports Deep Color, high-bandwidth 10.8 Gbps applications and HD resolutions at 1080p@60Hz (1920x1200)
  • Delivers a high-quality digital video signal — perfect for connecting a new DisplayPort source to an existing HDMI display
  • Passive adapter requires DP++ (dual-mode) video/graphics cards to regenerate the signal and ensure the best connection to an HD monitor, projector and more
  • Integrated design simplifies and eliminates cable tangles; latching connector ensures secure connection
  • Easy installation; Plug and Play
  • Three-year warranty
    Standards and Certifications
  • UL 20276
  • DisplayPort v1.1
  • FCC
  • CE
  • HDCP

    General
  • 8-bit and 10-bit Deep Color support
  • 10.8 Gbps bandwidth
  • Maximum single link resolution: 1920x1200 (1080p@60Hz)
  • Auxiliary channel support: 1 Mbps
  • One-lane, one-direction, four-line connection support
  • Passive

    Connections
  • DisplayPort 20-pin male (latching)
  • HDMI 19-pin female
  • Gold-plated contacts
  • Molded PVC

    Physical
  • Dimensions: 20 x 2.2 x 1.4 cm (5.91 x 0.87 x 0.55 in.)
  • Cable length: 15 cm (5.91 in.)
  • Weight: 14 g (0.5 oz.)

    Operating Environment
  • Operation Temperature: 0 – 40°C (32 – 104°F)
  • Storage Temperature: -20 – 60°C (-4 – 140°F)
  • Humidity (noncondensing): 0 – 96%

    System Requirements
  • Windows XP/Vista/7/8/8.1/10, Linux or Mac 9.x/10.x or above

    Package Contents
  • Passive DisplayPort to HDMI Adapter
  • Additional SKUs

    • Amazon ASIN: B07CYT95LG
    • EAN: 0766623151634
    • UPC: 766623151634

  • Physical Specifications

    • Product net weight: 0.03 kg
    • Product gross weight: 0.03 kg
    • Dimensions: 200 (L) x 22 (W) x 14 (H) [mm]
    • Packaging type: Bag
    • Packaging dimensions: 175 x 95 x 14.5 [mm]
    • Master Carton Quantity: 180
    • Master Carton Weight: 6.08 kg
    • Master Carton Dimensions: 400 x 370 x 200 [mm]
  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download
