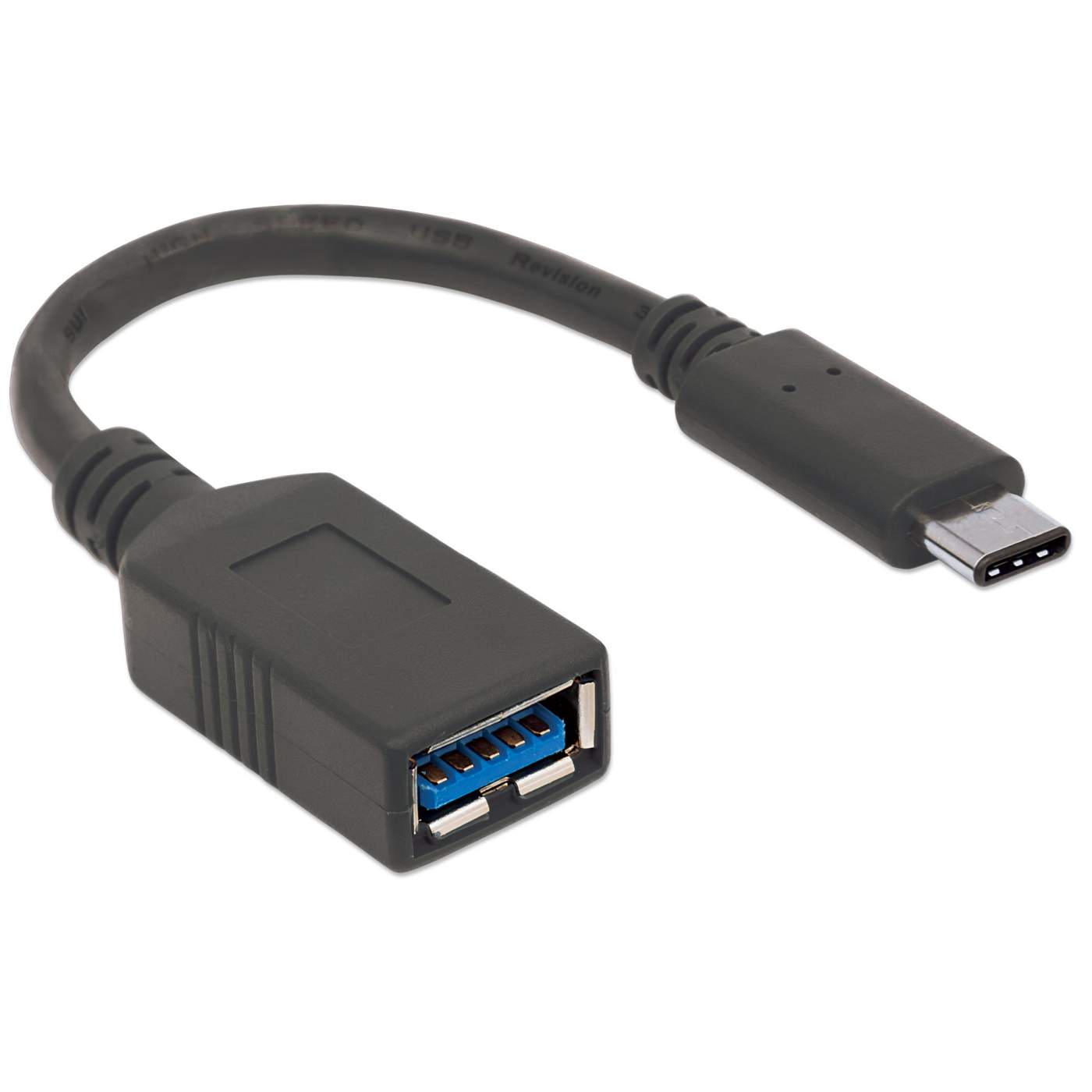

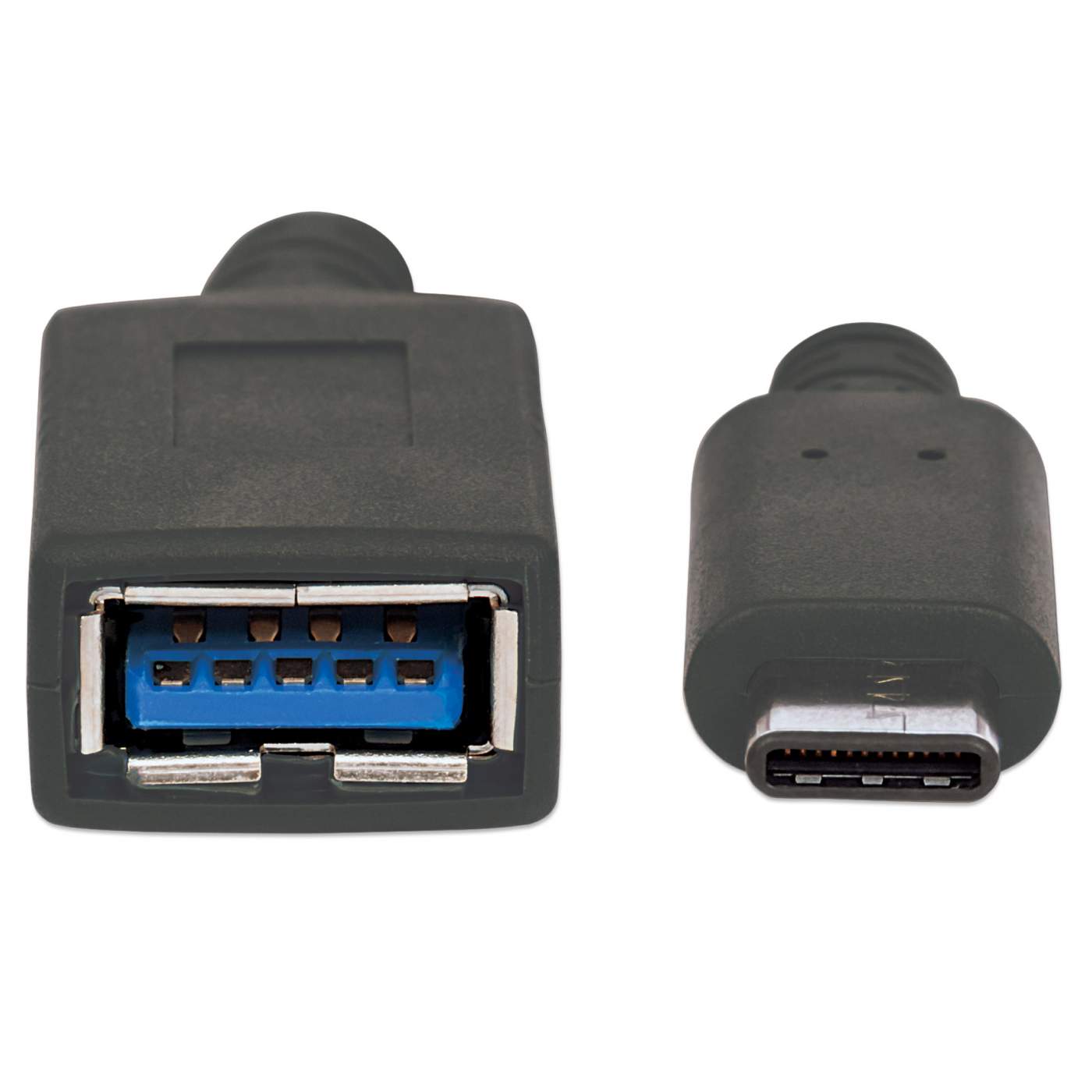

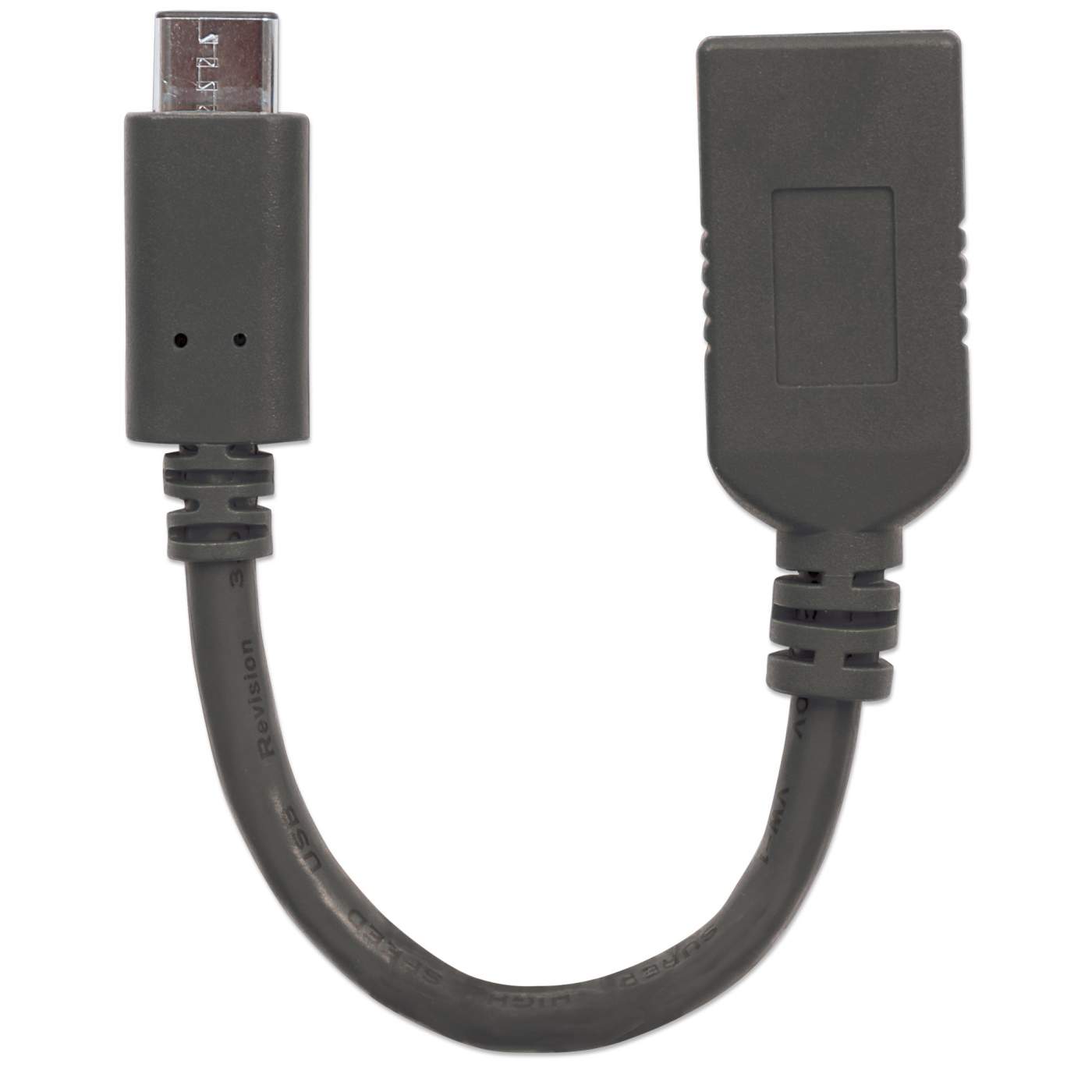

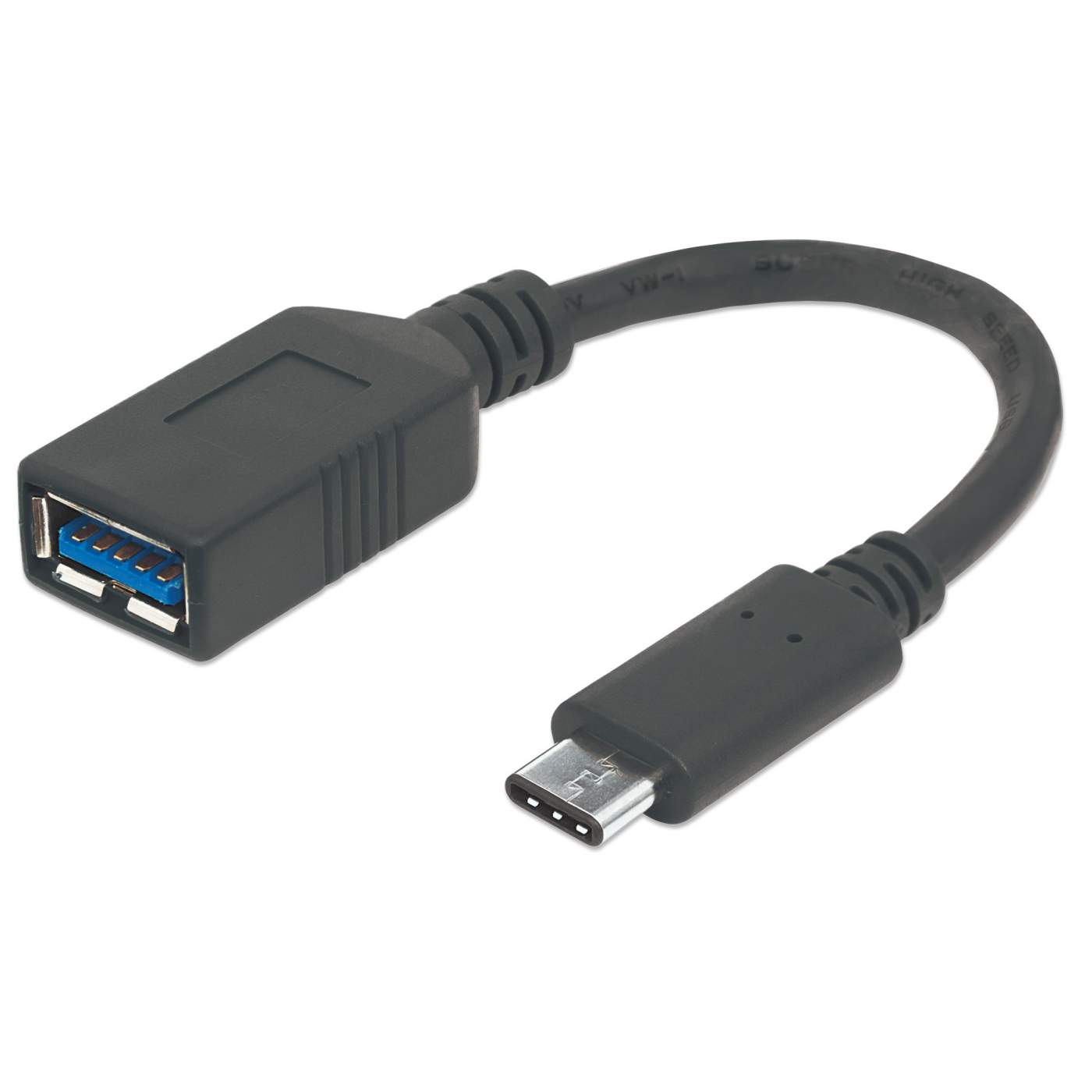

SuperSpeed USB-C Device Cable

The Manhattan USB-IF certified SuperSpeed Type-C Device Cable easily connects a USB type-A peripheral or accessory with a type-C device port. Ideal for use with any USB type-A plug-and-play device, this Device Cable supports full data transfer rates up to 5 Gbps on Windows and Mac systems. It provides fast, reliable transmissions and current up to 3 amps. Nickel-plated contacts, shielding and fully molded boots with strain relief help provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

• USB type-C male to type-A female
• Connects a USB 3.0 or 2.0 type-A device to a SuperSpeed type-C port
• Supports speeds up to 5 Gbps
• Delivers current up to 3.0 A
• SuperSpeed USB for ultra-fast data transfer rates with zero data degradation
• Lifetime warranty

Standards and Certifications

• UL 2725

• USB 3.2 Gen 1

• USB-IF

  General

• Data transmission support: 5 Gbps

• Power standard support: 3000 mA

  Connectors

• USB-C male, 5.1k resistor

• USB-A female

• Nickel plated

• Molded PVC boot

  Cable

• 30 AWG conductors

• Shielded

• Withstanding voltage: 300 VDC 10 ms

• Insulation resistance: 10 MΩ

• Contact resistance: 2 Ω

• Thermal plastic casing

  Physical

• Length: 15 cm (6 in.)

  Package Contents

• SuperSpeed Type-C Device Cable

• Additional SKUs

• Amazon ASIN: B07DSZ61DC
• EAN: 0766623355285
• UPC: 766623355285



• Physical Specifications

• Product net weight: 0.02 kg
• Product gross weight: 0.02 kg
• Dimensions: 150 (L) x 16 (W) x 10 (H) [mm]
• Packaging type: Bag
• Packaging dimensions: 177 x 100 x 11 [mm]
• Master Carton Quantity: 200
• Master Carton Weight: 4.30 kg
• Master Carton Dimensions: 300 x 210 x 200 [mm]

• Datasheet
• Datasheet     » Download
