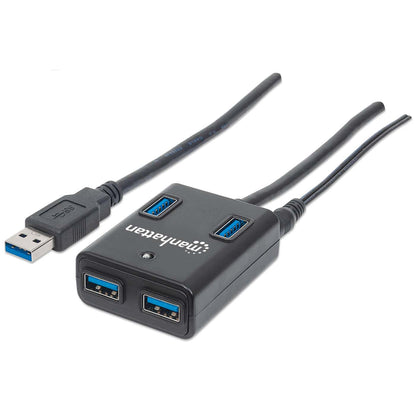

SuperSpeed USB 3.0 Hub

Powerful, fast SuperSpeed USB 3.0 performance in a multiport hub

The Manhattan SuperSpeed USB 3.0 Hub easily expands USB access for desktop and mobile use to connect more peripherals and mobile devices. Create more connections for SuperSpeed USB 3.0 devices such as storage devices and Web cameras. It's backward compatible to previous USB standards, providing versatility for attached devices. Plug and play with hot-swap capabilities, Windows and Mac compatibility and data transfer speeds up to 5 Gbps help the Manhattan SuperSpeed USB 3.0 Hub consolidate numerous, less-capable hubs into a single USB solution.

• Provides 4 SuperSpeed USB 3.0 ports for additional peripherals
• Supports data transfer rates up to 5 Gbps
• Capable of fast charging, up to 0.9 A per port with included power adapter
• Backward compatible with all USB 2.0 and 1.1 devices
• AC / bus powered with overcurrent protection
• Compact size ideal for both desktop and mobile use
• Plug and play; Windows and Mac compatible; no drivers required
• Three-Year Warranty

Standards and Certifications

• USB 3.0

• FCC

• CE

• RoHS

• WEEE

  Ports

• Transfer speeds: 12 / 480 Mbps / 5 Gbps

• USB 3.0 Standard-A (4)

• 5 VDC port

• Up to 900 mA per port, with included power adapter

  Physical

• Dimensions: 5.5 x 4.5 x 2 cm (2.2 x 1.8 x 0.8 in.); 60 g (2.1 oz.)

• Integrated USB 3.0 Standard-A cable, 50 cm (20 in.)

• AC power adapter; cable, 1.4 m (4.5 ft.)

• Housing: plastic

• LED power indicator, blue

• Net weight: 60 g (0.13 lbs.)

• Gross weight: 188 g (0.41 lbs.)

  Power Adapter

• Input: 100 - 240 V, 50/60 Hz; 0.6 A, maximum

• Output: 5 V / 3 A

  System Requirements

• USB-enabled PC or Mac system

• Windows XP/Vista/7/8.1 or Mac OS 9 or above

• Available USB port

  Package Contents

• SuperSpeed USB 3.0 Hub

• AC power adapter

• Instructions

  This product is part of a group; the complete list of variations follows:

• #162296 - 4-Port USB 3.0 Hub

• #162302 - 4-Port USB 3.0 Hub with included power adapter

• Additional SKUs

• Amazon ASIN: B00S7J7WW0
• EAN: 0766623162302
• UPC: 766623162302
• ALSO: 2405008
• API: 168474



• Physical Specifications

• Weight: 0.06 kg
• Dimensions: 5.5 x 4.5 x 2 cm
• Packaging: Hang Box
• Carton Quantity: 60
• Carton Weight: 13.00 kg

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download

• Manual
• Quick Instruction Guide     » Download
