USB-C to 3.5 mm Audio Adapter with Dongle

The latest USB-C to 3.5 mm Audio Adapter with Dongle to plug-in, play and enjoy better audio performance

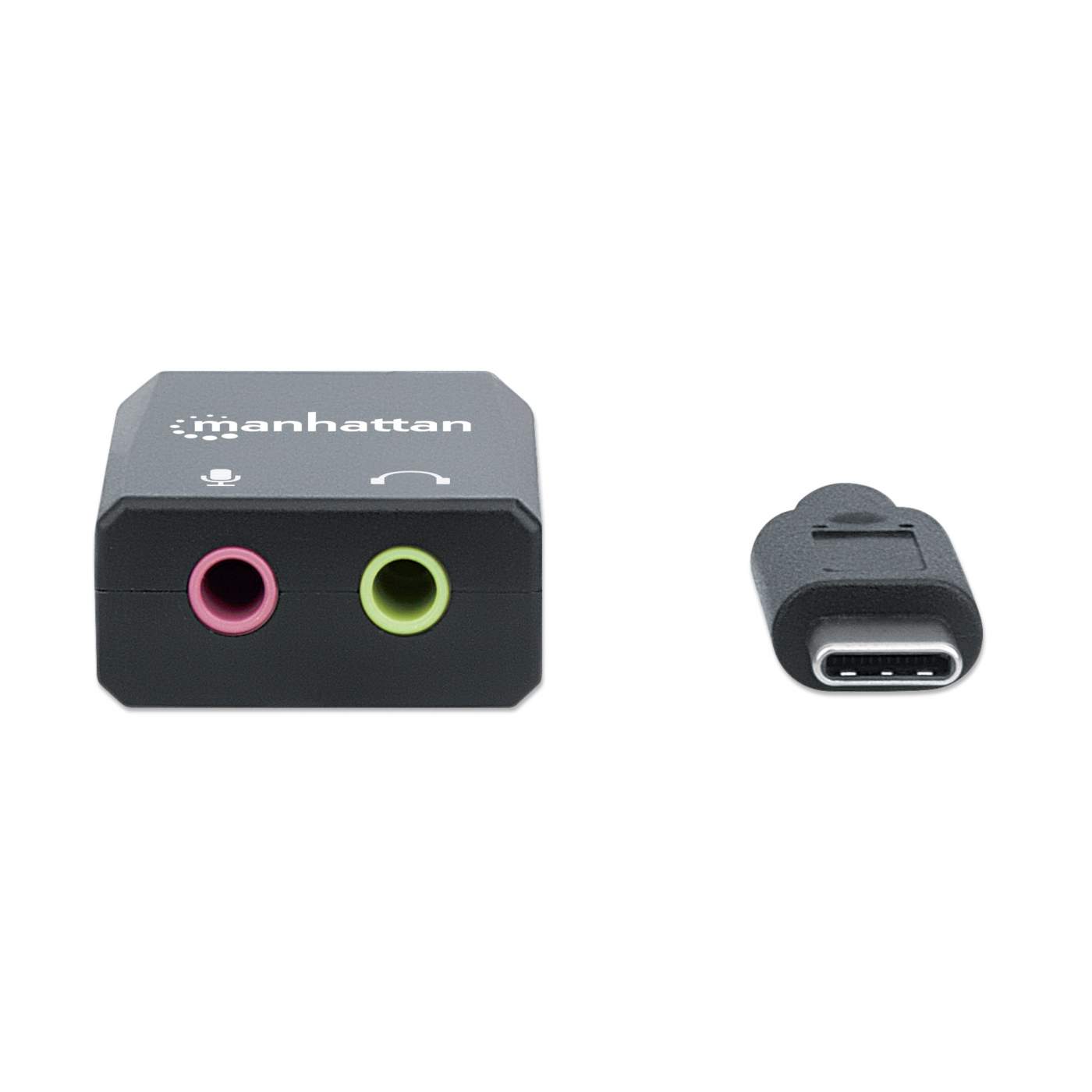

Ideal for desktop, notebook and netbook computers, this Manhattan USB-C Audio Adapter instantly creates microphone-in and audio-out ports through any USB-C port. The adapter's 3.5 mm ports securely hold plugs for headsets, microphones and speakers so you can work — and play — with confidence. With plug-and-play and hot-swap capabilities, this USB-C Audio Adapter can fully replace an inoperative sound card, bypass a damaged audio port or generally improve access to your device's audio capabilities without special drivers or software. A built-in Class-B power amplifier uses USB bus power to deliver high-quality sound, so there's no need for external power or additional cables. Audio support, 2.1 stereo sound and built-in sound effects with a 10-band equalizer deliver rich, high-quality experiences with familiar USB convenience and functionality.

• Instantly creates mic-in / audio-out connectivity through any USB-C port — ideal for desktop, notebook and netbook PCs
• Protects against electromagnetic interference to help you enjoy stable and great sound quality
• Improves access, bypasses a faulty sound card or audio ports, and upgrades audio performance
• Supports 2.1 stereo sound — includes preset sound effects with 10-band equalizer
• Plug and Play; no drivers or installation required
• Three-year warranty

Standards and Certifications

• USB 2.0

• USB audio device class V 1.0

• CE

• FCC

• RoHS2

• WEEE

• REACH

  General

• 2.1 stereo sound

• Digital Class-B power amplifier

• Bus-powered

  Chipset

• HS100B - C Media

  Connections

• USB-C male

• Microphone-in 3.5 mm TRS (tip, ring, sleeve) port

• Audio-out 3.5 mm TRS (tip, ring, sleeve) port

  Physical

• Dimensions: 41.2 x 25.1 x 12.1 mm (1.62 x 0.99 x 0.48 in.)

• Cable length: 110 mm (4.3 in.)

• Weight: 14 g (0.49 oz.)

• Housing: ABS

  Operating Environment

• Operation Temperature: 0 – 85°C (32 – 185°F)

• Storage Temperature: -40 – 85°C (-40 – 185°F)

• Humidity (noncondensing): 0 – 95%

  System Requirements

• Windows, Mac OS X, Chrome OS, Android

  Package Contents

• USB-C Audio Adapter

• Quick Instruction Guide

• Additional SKUs

• Amazon ASIN: B07YL4H5QP
• EAN: 0766623153317
• UPC: 766623153317



• Physical Specifications

• Weight: 0.01 kg
• Dimensions: 41.2 (L) x 25.1 (W) x 12.1 (H) [mm]
• Packaging: Retail Box
• Carton Quantity: 80
• Carton Weight: 4.30 kg
